Twin-Cone High Speed Pelletizing Machine-Air Cooling

Twin-Cone High Speed Pelletizing Machine-Air Cooling

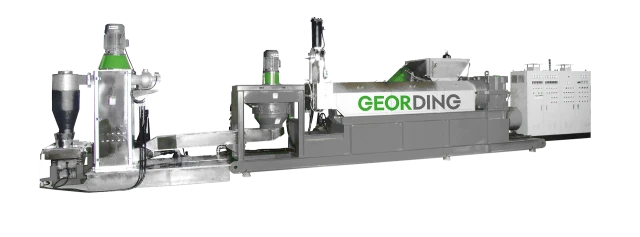

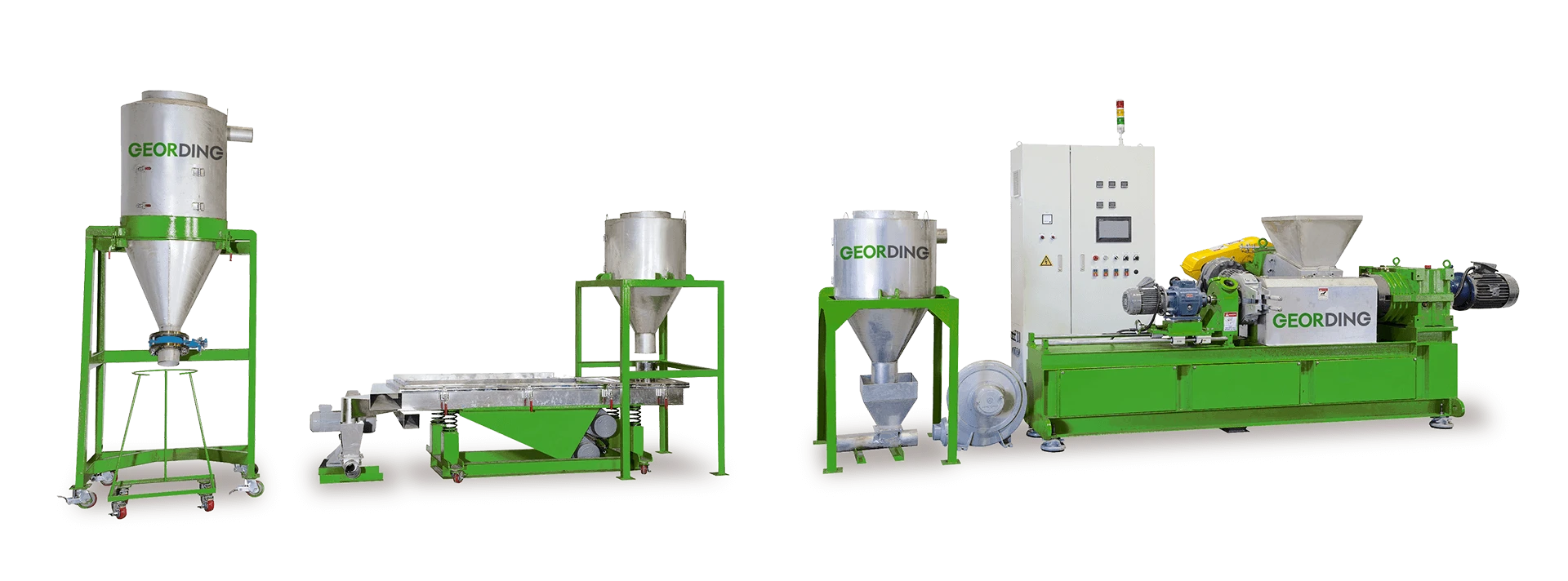

plastic granulator
plastic granulator
Gallery
twin-cone force feeding plastic granulator
Twin-cone force feeding.
air cooling die-face cutting with pellet machine
Using air cooling die-face cutting.

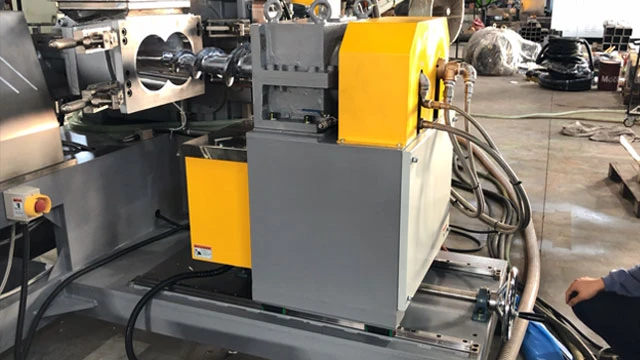

use high-precision linear guide,operate easier,easy clean,and save time and energy
Use high-precision linear guide, operate easier ,easy clean, and save time and energy.
use double layer cyclone cooling tank to cool down finished pellet
Use double layer cyclone cooling tank to cool down finished products.
options,kneader and hopper conveyor additionally as options for pre-kneading
You can purchase our kneader and hopper conveyor additionally as options for pre-kneading.
Features

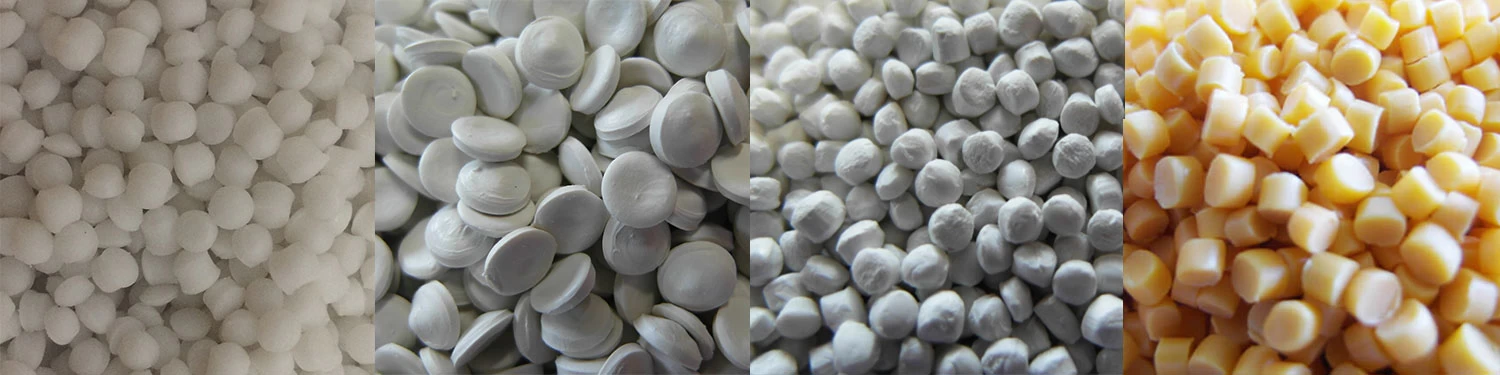

plastic granulator suitable for wooden power, caco3, tpu, eva, tpr

Rubber/Plastic mixed material, EVA, TPR, PVC, CaCO3, PVB, PU, TPU compounding, as well as various kinds of masterbatches pelletizing

  • Adequate kneading. Easy to clean and change raw material, saving hours of work.
  • High capacity, low electricity usage
  • Use double layer cyclone cooling tank to cool down finished products
  • Support the adding of Calcium up to 85%
  • The result of output production depends on actual specific gravity of materials
Media

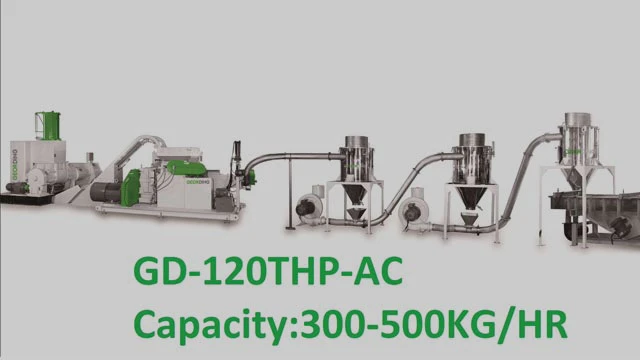

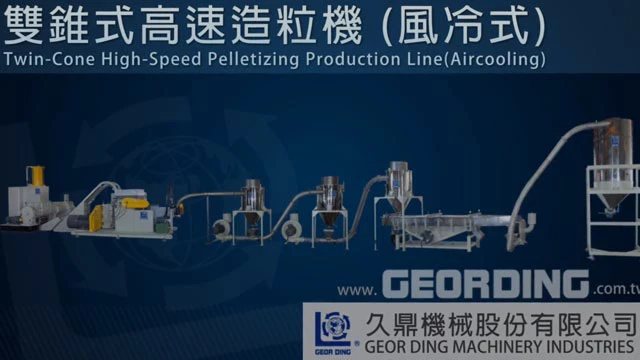

Twin-Cone High Speed Pelletizing Machine-Air Cooling

Application

wooden-powder-husk-rice-composite-material sawdust- and-pellets
Wooden Powder, Husk Rice Composite Material + PP, CaCO3
materials15 CaCO3_pellets_geording

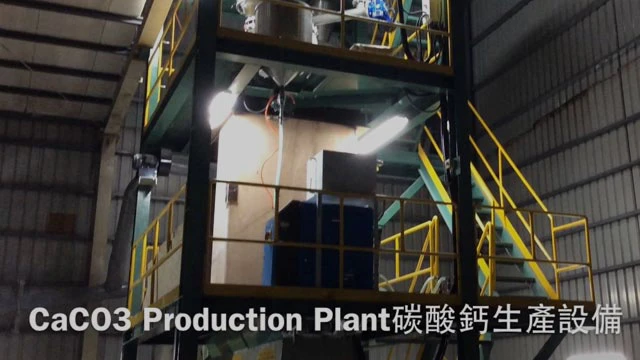

CaCO3
tpu-granules tpu-granules
TPU
materials20-01 eva-granules
EVA
tpr-granules tpr-granules
TPR
Specification
Model GD-65THP-AC GD-85THP-AC GD-100THP-AC GD-120THP-AC GD-150THP-AC GD-160THP-AC GD-200THP-AC GD-250THP-AC
Main Extruder
Screw Diameter L/D Ratio 8~12 8~12 8~12 8~12 8~12 8~12 8~12 8~12
Main Power 30~50HP 30~50HP 40~75HP 60~100HP 75~150HP 100~200HP 200~250HP 200~300HP
Twin Cone Feeding Motor 3~5HP 3~5HP 5~7.5HP 7.5~10HP 10~15HP 10~15HP 15~20HP 15~20HP
Temp. Control 4 zones 5 zones 5 zones 6 zones 7 zones 8 zones 8 zones 8 zones
Max. Outpou/Hr 100~150kg 150~200kg 200~350kg 350~500kg 400~900kg 500~1000g 1000~1200kg 1500~1800g
Die Face Cutter
Power 2HP 2HP 3HP 3HP 5HP 5HP 5HP 5HP
Blower
Power 3HP 3HP 5HP 5HP 7.5HP 7.5HP 10HP 10HP
Cooling Tank
Size Ø500 Ø550 Ø770 Ø770 Ø770 Ø770 Ø770 Ø770
Vibration Motor
Motor 1/4HP*2 1/4HP*2 1/4HP*2 1/4HP*2 1/4HP*2 1/2HP*2 1/2HP*2 1/2HP*2
Blower
Power 5HP 5HP 5HP 7.5HP 7.5HP 7.5HP 10HP 10HP
Storage Barrel
Capacity 1000L 1000L 1000L 1000L 1000L 1000L 2000L 2000L
Kneader
Volume 35L 35L 55L 75L 110L 110L 150L Opt.
Motor 40HP 40HP 100HP 150HP 200HP 200HP 300HP Opt.
Bucket Conveyor
Motor 2HP 2HP 2HP 2HP 2HP 2HP 2HP Opt.

﹡The product line can be made to spec meeting customer needs.
﹡Equipment specifications are also constanly updated. You are welcomed to contact us for details.
